Cloudflare Workers can act as a lightweight HTTP proxy in front of your XenForo site. The XenVn add-on provides a simple integration: outgoing requests from your forum are routed through Workers, thus hiding the origin server IP. Here is a guide explaining why, how, and an example of a ready-to-use Worker.
External connections such as: getting image content (convert external images into attachments), external url information (unfurl url to a rich preview) will go through Worker Proxy and completely hide your server IP.
Connections to important services such as: account connection, payment, captcha check, spam check, etc. will go directly without going through Worker Proxy to ensure stability.
Why use a Cloudflare Worker as a proxy? (pros & cons)
Pros
- Hides origin IP - outbound requests from XenForo will appear to originate from Cloudflare worker endpoints instead of your server, reducing direct exposure of your server IP.
- Simple to deploy - Workers are configured in Cloudflare dashboard; no additional external server required.
- Lightweight and fast at edge - for small request volumes Workers are very responsive and run at Cloudflare edge locations.
- Fine control - you can implement whitelists, logging, custom header handling, or simple request rewriting in the Worker.
- Cost for heavy traffic - Cloudflare Workers has a free tier but can incur costs at scale or for high request volume.
- Latency for free endpoints - free / shared worker endpoints can be slower than paid or dedicated proxies.
- Limits & rate limiting - Workers have CPU/time and bandwidth limits; very large files or long-running requests may be problematic.
- Security - if the Worker is misconfigured (no secret key check, or open to anyone), it can be abused to proxy arbitrary requests.
- Bypass list required - you should bypass important domains (things you don’t want proxied) to avoid creating problems with third-party services (see below).

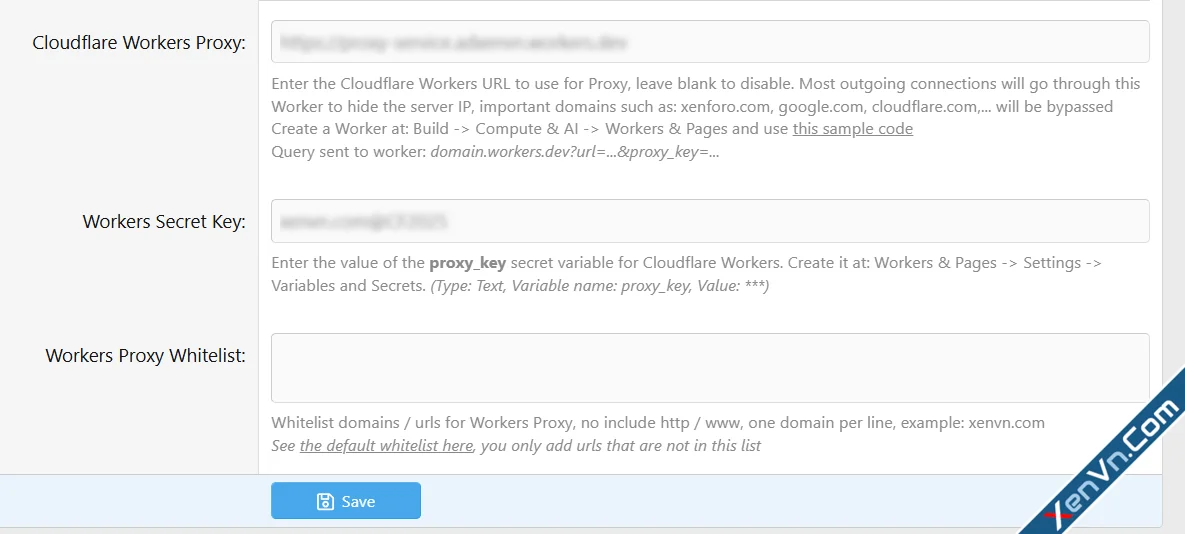

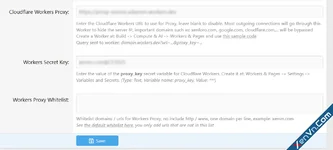

Enabling the feature in XenVn (where to enter settings)

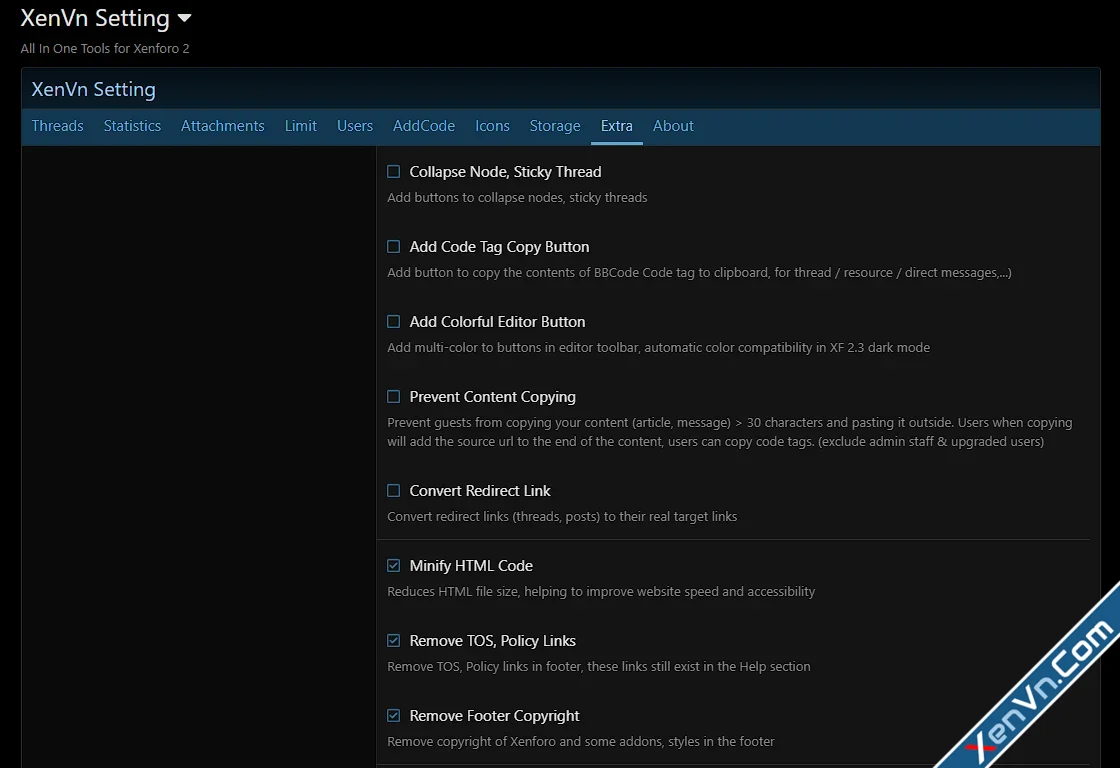

In the XenVn addon settings you’ll find fields for Cloudflare Worker integration. The UI path is:
XenVn Setting → Extra [I]→ [/I]Cloudflare Workers Proxy / Workers Secret KeyThere are three fields:
- Cloudflare Workers Proxy - a Workers endpoint URL (e.g.
https://your-worker.domain.workers.dev). - Workers Secret Key - the secret value (proxy_key) that XenVn will send to the Worker with each proxied request.
- Workers Proxy Whitelist - whitelist domains / urls for Workers Proxy.
How to create a Worker and the Secret Key in Cloudflare
- Create the Worker
- Log into Cloudflare Dashboard.
- Go to Build → Compute & AI → Workers & Pages.
- Create a new Worker by clicking the Create application button and using the sample code provided in XenVn's Worker setup section.
- Deploy the Worker. You will get a *.workers.dev subdomain (or you can bind a custom domain).
- Create the Secret proxy_key
- In the Worker’s settings, open Settings → Variables & Secrets.
- Add a Secret (Type: text, Variable name: proxy_key).
- Set its value to a strong random string (this is the secret XenVn settings will use).
- Copy Worker URL & Secret to XenVn
- Paste the Worker URL into Cloudflare Workers Proxy in XenVn.
- Paste the secret into Workers Secret Key in XenVn.

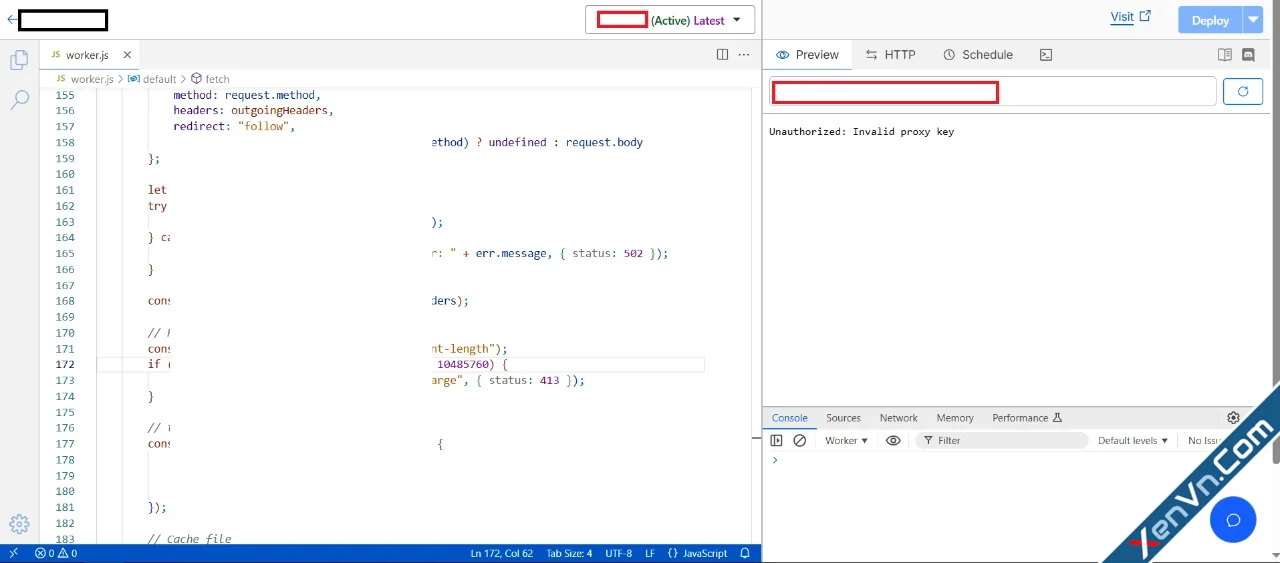

Worker behavior & query format
XenVn will send requests to the Worker in the form:
https://your-worker.workers.dev?url=<target_url>&proxy_key=<secret>Important domains are bypassed (not proxied) by XenVn to avoid issues: xenforo.com, google.com, cloudflare.com, paypal.com, etc. - those requests will go directly or be excluded depending on the addon logic.
How to test Worker Proxy
- Go to Xenforo Admin → Tools → Test image proxy.
- Paste a link to an external image.
- Click Run test, if the result is successful: ok.

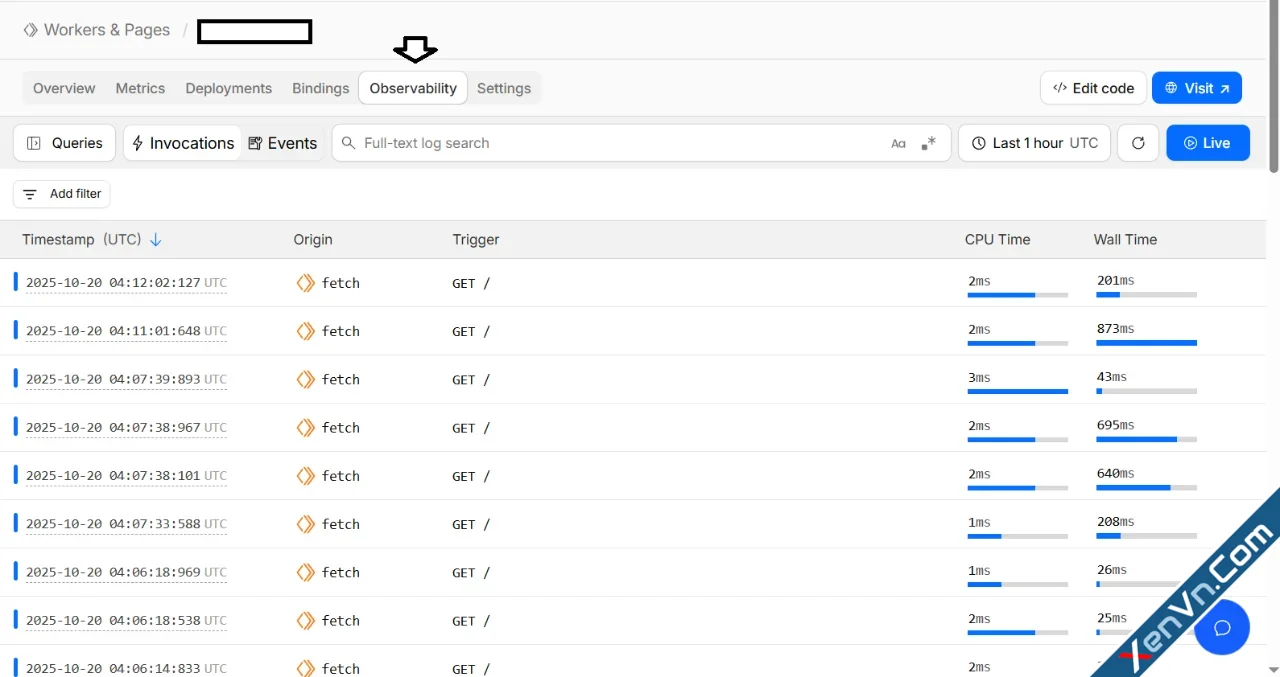

- Go to the Workers & Pages management section on Cloudflare → Select your Worker.
- Go to: Observability.
- You will see the connection log.
- Note: it will update every 2 minutes.
Cloudflare Workers Free Plan Limits
Workers & Pages Functions
- Up to 10ms CPU time per request
- Up to 100,000 per day (UTC+0)
- 1 concurrent build slot
- Up to 3,000 minutes per month
- Filter and analyze logs emitted from your Worker
- 200,000 events per day
- 3 day retention
By default, the following domains will not go through the Worker (bypass). These are important, reputable domains, and are used for important connections such as: linking accounts, sending mail, processing payments, captcha check, spam check... so we should not proxy them.
You can add other domains yourself if needed in the Workers Proxy Whitelist field.
